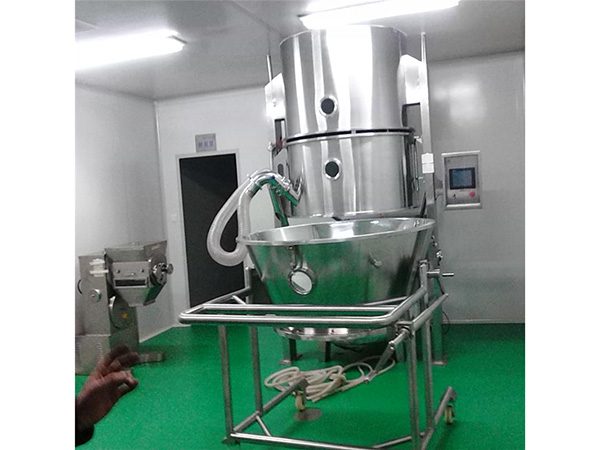

LDP流化床包衣機
LDP流化床包衣機
詳細說明
應用概述 General of applications
★旋流流化床制粒包衣機是將流化床做成葉片式結構的流化床，并使葉片呈一定斜度，讓氣流從葉片的間隙通過，形成環流狀的強大氣流，使物料呈旋渦狀似的有序運動，同時安裝在側壁的氣動噴嘴將粘合劑或包衣液噴入呈旋渦狀的物料層，從而將粉體制成顆粒或獲得連續均勻的衣膜。
★其廣泛用于粉體制粒和粉體、顆粒、丸的薄膜、腸溶、緩控釋包衣，以及各種物料的掩味、防潮、防水、著色、隔熱、隔離等包衣。
★L(fēng)BF Turbojet fluid-bed granulator coater has vane-shape bottom of hopper which has a certain lean, let the air flow pass through the rift then form circle-shape strong air flow, it makes material rotate as regular turbojet movement. Meanwhile the pneumatic nozzle installed under left wall spray binder or coating liquid into turbojet material, in this way granulating or coating film can be obtained.
★It is widely used in coating of powder, granule, pellet, entericreleasing, slow and control releasing, and coating of taste masking, moisture-proof antioxidation, prevent water, heat insulation, coloration and separation etc.
設備特點 Features of equipment
★旋流驅動空氣分配器，確保物料有序運動。
★旋流流態化，克服了溝流及死角現象。
★制得的顆粒多孔、速溶、真球度高、表面光澤度好、致密性強、不易破碎。
★吸潮性和流動性差的物料也能制成合格的顆粒。
★Rotational flow drives air distributor in order to guarantee that material can move in order.
★Fluidization of rotational flow, it overcomes channel flow and dead corner.
★The prepared granule is porous and can solve quickly, with high sphericity coefficient,good surface luster,certain intensity and is not easy to break.
★It can deal with low moisture-absorb and fluidity material to gain complete granule.
項目 ltem 規格 Specification | 0.5 | 5 | 10 | 15 | 30 | 60 | 90 | 120 | 200 | 300 | 500 | 800-1000 | ||
投料量 Capacity | kg/批 kg/batch | 0.5 | 5 | 10 | 15 | 30 | 60 | 90 | 120 | 200 | 300 | 500 | 按用戶要求設計 By client | |
風機功率 Power of fan | kw | 2.2 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 18.5 | 22 | 30 | 55 | ||
壓縮空氣 Compressed air | 壓強 Pressure | Mpa | 0.6 | |||||||||||
耗量 Consumption | m3/min | 0.45 | 0.6 | 0.6 | 0.6 | 0.6 | 0.9 | 1.1 | 1.3 | 1.8 | 2.4 | 3 | ||
蒸汽 Steam | 壓強 Pressure | Mpa | 0.4-0.6 | |||||||||||
耗量 Consumption | Kg/h | 6KW | 9KW | 53 | 71 | 95 | 143 | 167 | 183 | 343 | 381 | 450 | ||
主機尺寸 Installation size for reference | H1(mm) | 2600 | 2600 | 2300 | 2450 | 2450 | 3050 | 3050 | 3050 | 3500 | 3700 | 4050 | ||
H2(mm) | 250 | 320 | 340 | 490 | 540 | 590 | 690 | 790 | 890 | |||||
H3(mm) | 2100 | 2250 | 2250 | 2850 | 2850 | 2850 | 3300 | 3500 | 3850 | |||||
?1(mm) | 300 | 550 | 550 | 650 | 700 | 1000 | 1100 | 1200 | 1400 | 1600 | 1800 | |||
?2(mm) | 150 | 180 | 180 | 250 | 250 | 280 | 280 | 280 | 280 | 315 | 355 | |||
B1(mm) | 1550 | 1650 | 1010 | 1110 | 1160 | 1460 | 1560 | 1660 | 1860 | 2060 | 2260 | |||
B2(mm) | 1460 | 1760 | 1860 | 2460 | 2660 | 2860 | 3260 | 3660 | 4060 | |||||
L(mm) | 850 | 1100 | 1100 | 1250 | 1530 | 1530 | 1650 | 1650 | 1750 | 1850 | ||||
所有參數僅作參考，視物料情況，本公司擁有變更權利，并不另行通知。
All datas are used for reference only. According to the condition of material, our factory has the right to change but not notice, pardon!
